Restaurant Dumbwaiter ~ Food Service Industry Dumbwaiters


Restaurant Dumbwaiter ~ Food Service Dumbwaiter

Elevation Innovation Inc. has developed a high quality “Fully Underwriters Laboratory Certified” restaurant dumbwaiter system available to the food service industry UL file #SA32120. The Inteli-Lift GEN II RST restaurant dumbwaiter is an economical motorized dumb waiter. This is usually installed by the restaurant dumbwaiter contractor in under 2 days with fire rated dumbwaiter doors.

youtube-logo-square  Inteli-Lift GEN II Fully UL Rated Dumbwaiter system

Cat 5 connections from floor to floor including door locks and digital keypads

Restaurant Dumbwaiter Standard Features:

  • Intelligent dumb waiter controller with text display and variable frequency drive
  • Optional waterproof, steam proof controller enclosure for in kitchen use
  • VFD variable frequency drive gives complete motor control and protection and coverts 115V power into 230V 3 Phase
  • Soft start and soft stop
  • Digital LED call / sends – Programmable LED can stay on or turn off
  • Travel direction indicator / floor indicator
  • Programmable arrival buzzer (can be turned off)
  • Stainless steel cab – 20”wide  x 30 deep x 36” tall (or custom size)
  • Three custom aluminum trays
  • Custom aluminum rail system
  • Maintenance free 3 phase Bauer motor/gear assembly made in Germany- Wash down ready
  • Safety devices including slack cable, final top limit, and sling type A safety brake system
  • Interlock door safety devices
  • 250 Lb capacity
  • 30 fpm rated speed (50 fpm available)
  • Economical, reliable cable drive
  • Travel up to 75 feet and 9 stops

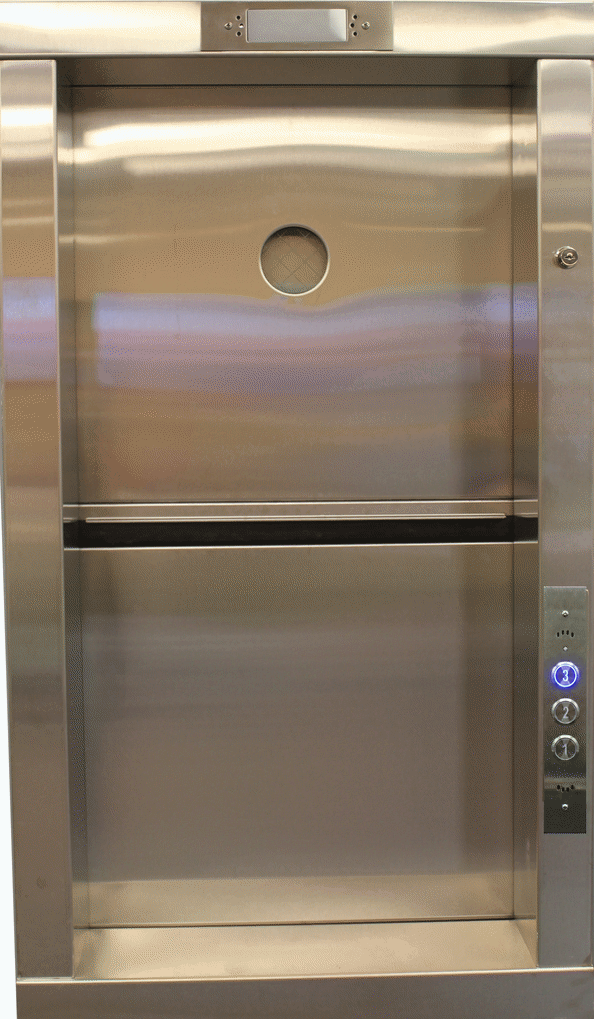

  • Bi-parting gate systems
  • 115V or 230V dumb waiter operation single phase or three phase 50/60 Hz.
  • 50 Db motor sound rating – same as a refrigerator only in an enclosed shaft

Restaurant Dumbwaiter Optional Features:

  • Optional waterproof, steam proof controller enclosure for in kitchen use
  • Bi-parting or slide up 90 minute rated stainless or mild steel dumb waiter doors (Recommended)
  • Pre-Hung swing dumb waiter doors 90 minute rated stainless steel
  • Cab configurations including same side and front/back and 90*
  • 230 Volt 50/60 Hz dumb waiter operation
  • 24 Volt LED car light
  • ***Optional additional 24 volt car here LED / device remotely located to alert serving staff unit is at there floor
  • Electrical disconnect

Restaurant Dumbwaiter systems Include:

  • Guide rail, opposite guide rail & trolley assembly
  • Motor/gear assembly
  • Dumb waiter cab
  • Intelligent dumb waiter controller with LCD screen and cat 5 interface
  • Digital call / sends with LCD display
  • Interlocks with pre-wired cat 5 harnesses
  • Limit switches
  • Dumb waiter Assembly hardware
  • Dumb waiter Installation Manual

Units ship in 4 weeks (custom sizes may take additional time)
Customer is responsible for all permits and local codes

Restaurant Dumbwaiter Warranty:
  • Elevation Innovation Inc. Provides a 3 year Limited warranty on the Inteli-Lift commercial dumbwaiter systems.
